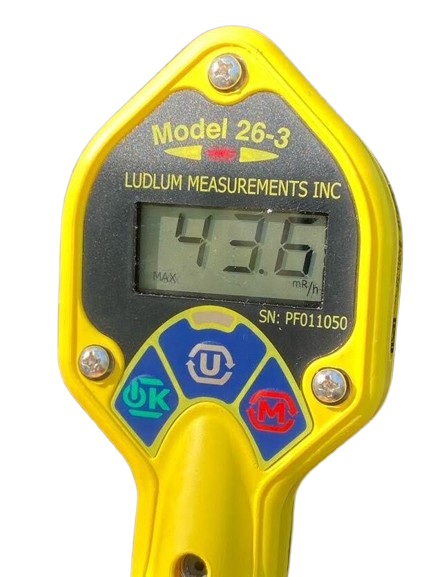

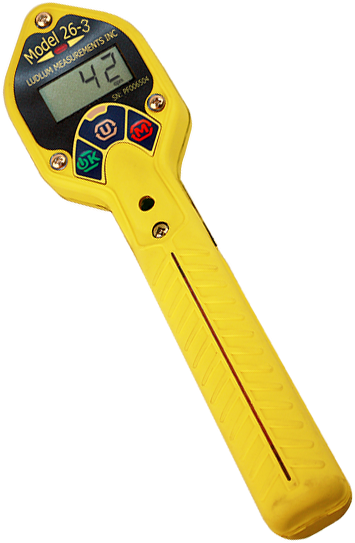

The Ludlum Model 26-3 is a rugged, cable-free radiation detector combining a high-sensitivity GM pancake with a large auto-ranging LCD and intuitive one-handed operation. Ideal for detecting alpha/beta contamination and measuring gamma fields, it offers flexible units, three operating modes, and long battery life in a compact, water-resistant design
Features
- Integrated, Lightweight Ergonomic Design
- High-Impact Plastic with Water-Resistant Rubber Seals
- Employs Standard 15.51 cm2 GM Pancake Detector
- Displays in mR/hr, µSv/h, dpm, Bq, cpm, or cps
- Dead-Time Correction (DTC) Allows Gamma Measurements Up to 1999 µSv/h (1000 mR/hr)
- Simple Three-Button Operation
- Count Rate, Dose/Exposure Rate, and Counting Alarms
- Automatic Display Backlight
- Bright Red Flashing ALARM LED
- Includes Wrist Strap, Clear Pancake Cover & Lanyard
Compact, Powerful, and Cable-Free
The Ludlum Model 26-3 delivers fast, reliable radiation detection in a rugged, water-resistant, and cable-free design—ideal for frisking people and inspecting objects with ease.
High-Performance Detection, Clear Readout
Equipped with a 15.51 cm² GM pancake, loud audible clicks, and a large auto-ranging LCD with backlight, it provides instant feedback. Switch between mR/hr, µSv/h, dpm, and Bq at the touch of a button.
Simple, One-Handed Use
Three intuitive modes—RATE, MAX, and COUNT—offer precise control for real-time monitoring, peak value capture, and timed surveys. All in one durable, ergonomic tool.
Versatile Measurement Options

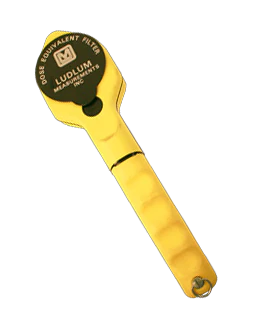

Display readings in counts, activity, averaged rates, or accumulated dose—tailored to your needs. Add the optional Ambient Dose Filter for improved energy response in dose measurements.
Long Battery Life, Smart Configuration
Powered by just two AA batteries, the Model 26-3 runs for hundreds of hours. Settings can be locked or adjusted based on user or calibrator preference.
User-Friendly Features
A responsive backlight activates in low light, and the audible click can be muted for discreet use—perfect for both routine and sensitive surveys.
Additional Services
To support optimal performance and compliance with regulatory standards, PEO offers the following services for this device:
Service
Maintenance
Calibration
Leakage Tests
These services are available through PEO.
For service appointments or contract options, please contact your PEO representative.
Additional Services
To support optimal performance and compliance with regulatory standards, PEO offers the following services for this device:
Service
Maintenance
Calibration
Leakage Tests
These services are available through PEO.
For service appointments or contract options, please contact your PEO representative.
PDF en beschikbare downloads
U kunt de informatie op deze pagina en de beschikbare downloads downloaden als één PDF-bestand. Voor dit product is één download beschikbaar.
Vul eenmalig uw e-mailadres in om toegang te krijgen tot alle downloads op de website van PEO.
Voor dit product is één download beschikbaar.
Model 26-3 High-Range Frisker_PEO.pdf
