Coming soon; Kromek D3S compact high sensitive CsI(TL) spectral gamma-neutron detector for network security application
A sensitive thermal neutron scintillator detector and CsI (TI)/ silicon photo-multiplier-based gamma detector in one device that’s hardly bigger than the palm of your hand; Kromek realizes this with the introduction of the new D3S.
The D3S uniquely combines low-cost with high sensitivity and small form factor together with a long-life battery. Therefore it is the ideal portable gamma-neutron detector.

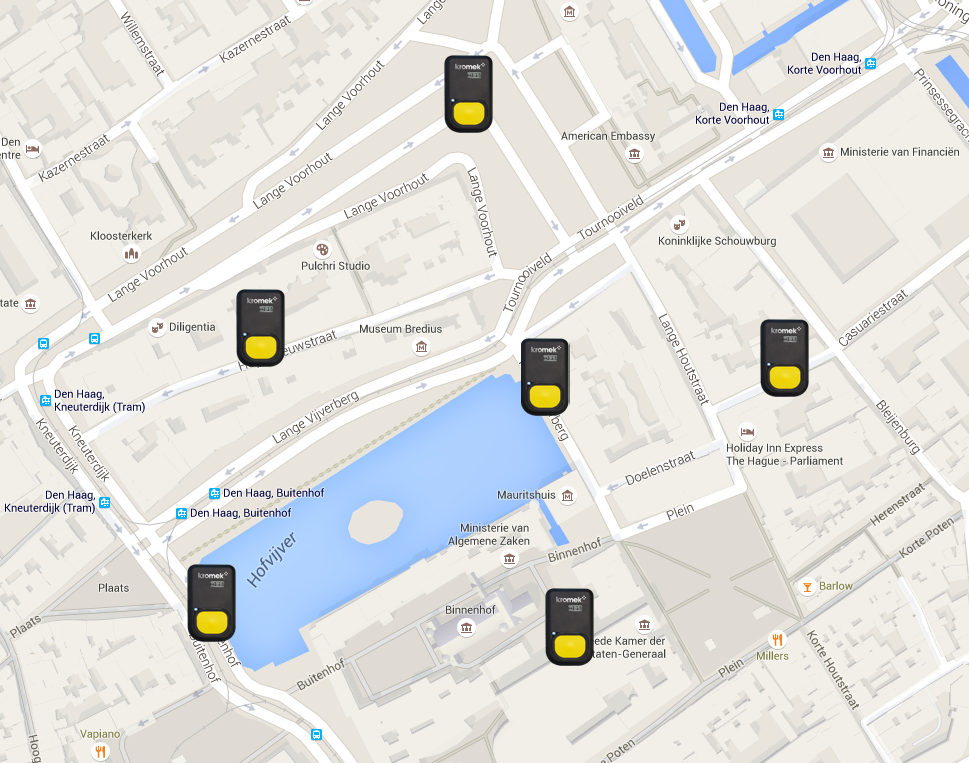

Create your intelligent wireless radiation detection network
USB connection allows communications with Kromek’s own K-Spect and MultiSpect Analysis acquisition software. This creates a wireless radiation detection network.
Bluetooth and USB communications protocols are available for users to interface to their own software infrastructure.
Watch movie: intelligent wireless radiation detection networks by Vincent Tang (DARPA)
D3S applications
- blind detector forming part of a secured integrated monitoring network
- terrorist threat detection network at borders, high profile events or festivals
- equipment enforcement inspection teams
- local display as a RIID/ SPRD presenting dose and spectral data to the user
Scope
- airports, harbours
- border control
- military security
- first responders
- homeland security
- Railways
Kromek D3S characteristics
- discreet wearable design; lightweight and small
- spectroscopic capability
- easy to use; single button operation
- LED indicator
- gamma detector: 2’’x1’’x0,5’’ CsI(TI)
- gamma energy range: 30 keV to 3 MeV
- neutron detector: 32,5x100mm (50% efficiency to thermal neutrons)
- doserate: up to 15 µSv/h @ 662 keV
- size: 132x80x23,5mm
- operational battery life: 12 hours
- IP53
Animation: is this future equipment for a safer Netherlands?
Are you also enthusiastic about the Kromek D3S?
Download the datasheet or contact one of our product specialists.
